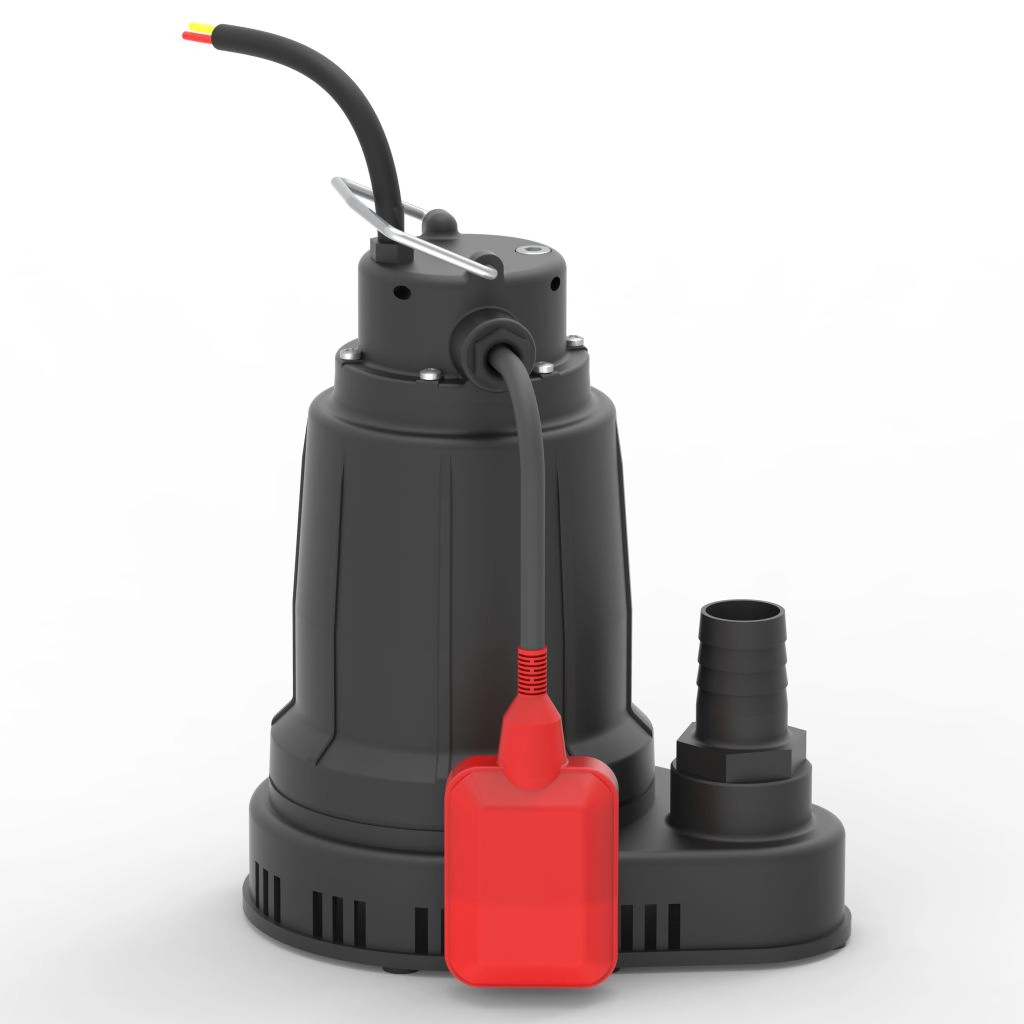

Features

• Pump volute casing made from composite engineering polymer ABS, with vertical discharge port suitable for pumping liquids up to 50u00b0C.
• Semi-open impeller crafted from composite engineering polymer Polyphenylene Oxide.
• Pump shaft made of stainless steel (ASTM A582, AISI 410 grade).
• Equipped with a mechanical shaft seal constructed from Carbon/Ceramic/NBR/SS304 materials.

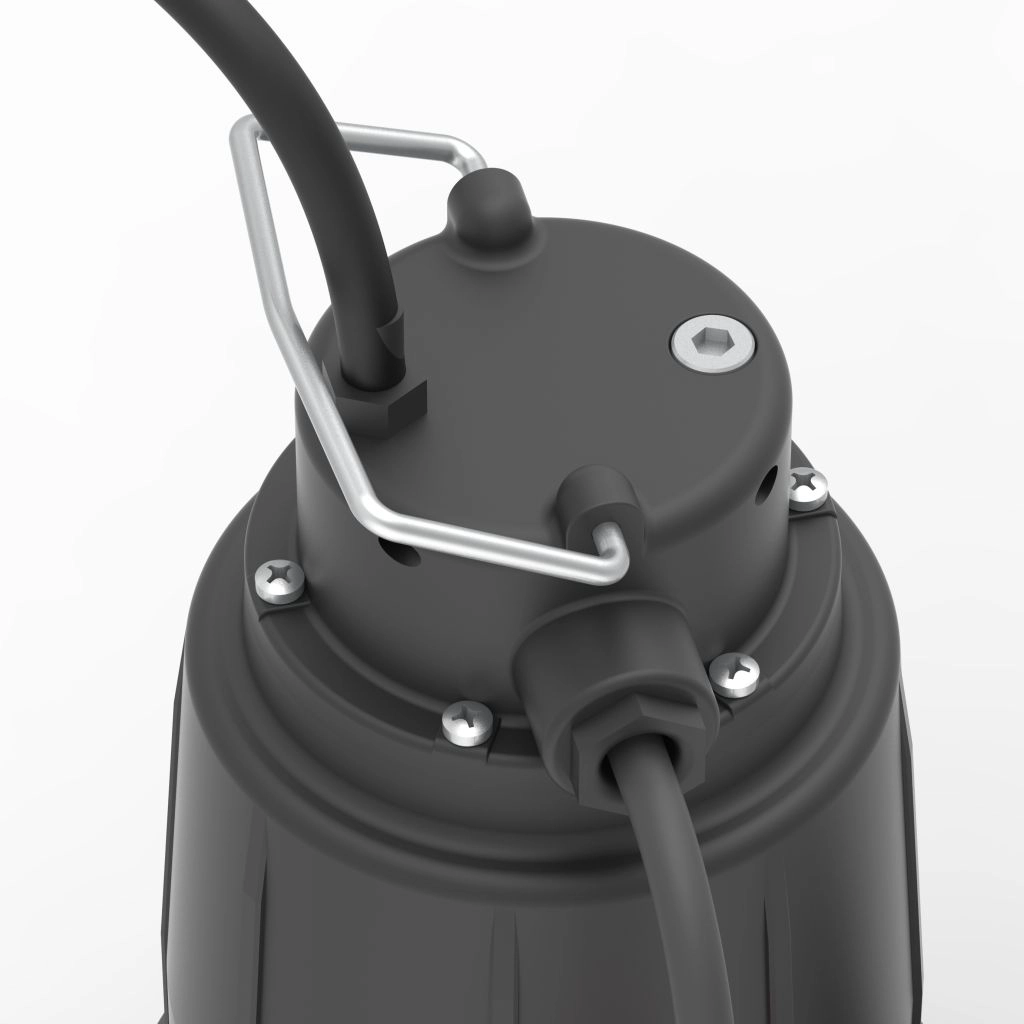

• Close-coupled to a dry submersible motor with class F insulation, IP68 protection, 2900 rpm, rubber-sealed cable entry.
• Suitable for S1 duty when fully submerged and S3 duty when partially submerged. Available in 1-phase (240V) and 3-phase (415V) versions.

Variety & Range

Flow range- up to 20 mu00b3/h

Head range- up to 12.9 metres

Rating u2013 0.18kW & 0.37 kW

Rated Speed u2013 2900 RPM
